Magnetite

Magnetite Powder for Industrial Applications


Magnetite Powder for Industrial Applications is a natural iron oxide mineral also known as Black Iron, Fe3O4, Magnetic Iron Oxide, Natural Iron Oxide, Ferric Iron Oxide, Metallic Oxide, Industrial Iron Oxide, Powdered Iron Oxide and Ferrous Ferric Oxide.


Global Industries is a manufacturer and exporter of high-quality Magnetite Powder for Industrial Applications. Our magnetite products are suitable for a range of industrial uses, including dense media separation, water treatment, heat storage and heavyweight concrete applications.


Grades: Magnetite Powder is available in fine and coarse grades, as well as mixtures of these grades. We maintain 0% moisture in our magnetite grades. Each grade has a controlled particle size distribution to suit different applications.

Magnetite: Magnetite is a mineral whose primary component is iron oxide containing iron(II) and iron(III). Its chemical formula is Fe3O4, and it is often expressed as iron(II,III) oxide or ferrous-ferric oxide.

Magnetite powder for industrial applications

PROPERTIES

  • Magnetic Content – 95%
  • Particle Size ASTM – 10 Mesh to 500 Mesh (2000 Micron to 25 Micron)
  • Moisture – 0%
  • Specific Gravity – Above 4.6
  • Color – Black, Grey Black
  • Excellent Resistance – Heat, Weather, Corrosion
  • Packing – 25 Kg, 50 Kg, Big Bags

Standard Grades


Our magnetite is available in fine and coarse grades, as well as mixtures of these grades. We maintain 0% moisture in our magnetite grades. Each grade has a controlled particle size distribution to help meet the requirements of different industrial applications.


Benefits


  • Thermal energy storage
  • Noise and vibration dampening
  • Reduced heat of hydration
  • Space-saving
  • Increased weight and/or density
  • High submerged/saturated density
  • Reduced volumes
  • High radiation shielding characteristics

Applications


  • Dense Media Separation
  • Heat Storage
  • Radiation Shielding & Heat Retention
  • Water Treatment
  • Concrete Weight Coating
  • Heavyweight Concrete

Dense Media Separation


Magnetite powder is used to produce dense medium slurry for coal washing, mineral processing, recycling of metals and scrap metal recovery. Its density and magnetic properties make it useful in separating materials with different densities.


Principles of Heavy Media Gravity Separation


Heavy media gravity separation involves separating products with different densities. Magnetite and water are mixed to create a slurry in which a product with a lower density than the slurry floats, while a product with a higher density sinks. This process is also known as sink-and-float separation.

The ratio of magnetite and water can be adjusted to achieve the required intermediate density for the materials being separated. Using magnets, magnetite can be recovered from waste and coal streams and reused in the coal separation circuit. Recovery and reuse can help reduce material consumption and operating costs.

Heavy media separation systems are also used in potash production and in gold and diamond mining.


Specifications


  • Magnetite Content: >96%
  • Moisture: 0%
  • Low Water Absorption: <0.3%
  • Recyclable due to its ferromagnetic properties
  • Chemically stable
  • Durable
  • Non-toxic

Heat Storage


Magnetite is a natural iron oxide mineral that can store heat. It is used in heat-storage blocks and night-storage heaters where thermal energy storage is required.


Magnetite is considered for thermal energy storage because of its availability, chemical stability and heat-resistant properties. Its suitability depends on the requirements of the particular heat-storage system.


  • Abundant availability
  • Relatively low material cost
  • Chemical stability through heating and cooling cycles
  • High heat resistance
  • Non-flammable mineral material
  • High heat capacity per unit volume
  • Useful thermal properties

Protection, Shielding and Refraction with Magnetite


Magnetite aggregates are used in concrete and other materials for applications that require high density, heat resistance and radiation shielding.


Concrete is used in construction and industrial applications because of its strength and durability. Magnetite aggregate can increase concrete density and may improve its suitability for applications involving high temperatures and shielding requirements.


Magnetite aggregate is also used in radiation-shielding concrete. Its high density can help improve shielding against gamma radiation in applications such as medical facilities and nuclear installations. The final performance depends on the concrete mix design and project requirements.


Heavy concrete containing magnetite can be selected for projects that require additional density, thermal performance or radiation protection.

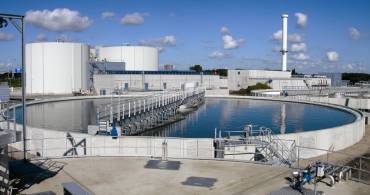

Water Treatment


Cleaner, Safer Water: Magnetite-based materials can be used in certain water-treatment processes. The PureMag product described below is intended for applications involving coagulation, flocculation and the removal of suspended material.


Applications include:


Municipal applications: Primary treatment and chemically enhanced primary treatment.

Stormwater and combined sewer overflow treatment.

Recycling and reuse applications.

Reverse osmosis pretreatment.

Drinking water treatment.

Heavy metal removal.

Treatment of water containing high solids, algae and phosphorus.


Industrial applications:

Food and beverage processing.

Oil and gas applications.

Industrial process water.


Features


Can be incorporated into suitable coagulation and flocculation processes.

Can be used with compatible clarifier systems, including circular, rectangular and inclined plate or tube settlers.

Material recycling can support sludge densification and solids contact during clarification.

Magnetically retrievable materials may support recovery and reuse where the treatment system is designed for this purpose.


Key Benefits


Contaminant removal – Suitable treatment systems can help reduce suspended solids, turbidity and other targeted contaminants depending on the process design.

Operating costs – High-rate clarification systems may reduce the space required for reaction and solids separation tanks.

Easy incorporation – Compatible systems may be integrated into existing treatment infrastructure following an engineering assessment.

Material recovery – Recoverable treatment media can be reused where supported by the process design.

Process stability – Appropriate system design and process control help maintain consistent treatment performance.

Purification support – Suitable treatment configurations can support downstream purification processes.


Heavy Concrete


Magnetite is a natural iron oxide mineral used as an aggregate in heavyweight concrete. Due to its high specific gravity, magnetite can increase concrete density when used as part of a suitable concrete mix. Heavyweight concrete is used in radiation shielding, medical and nuclear facilities, counterweights and thermal energy storage applications.

Magnetite can also act as a heat-absorbing material in concrete. Its thermal properties may help manage temperature changes during curing and reduce the risk of thermal cracking when the mix is appropriately designed.


Applications Using High-Density Concrete


Heavyweight concrete containing magnetite is used in construction and engineering projects that require increased density. Applications vary according to the structural design and performance requirements.


Offshore


  • Gravity-based structures
  • Ballasting for floating wind constructions
  • Coastal and erosion protection
  • Anchors for wave and tidal devices
  • Concrete weight coating for pipelines
  • Concrete anchoring

Civil Engineering & Construction


  • Counterweights
  • Radiation shielding for nuclear and healthcare facilities
  • Tunnelling
  • Underground concrete structures
  • Thermal energy storage
  • Bridges

Concrete Weight Coating for Offshore Pipelines


Concrete weight coatings are applied to offshore pipelines to provide negative buoyancy and protect pipes against collision damage. Magnetite can be added to a suitable concrete mix to increase its density for pipeline coating applications.


Applying Offshore Pipeline Concrete Coating


Manufacturers of coated pipelines use different techniques to apply heavyweight concrete coatings, depending on the pipe specifications and production process.

  • Spray-applied heavy concrete coating: This technique requires concrete with suitable flow properties for spraying. Magnetite-containing mixes can increase density while meeting the process requirements.
  • Compression concrete weight coating: This method applies concrete weight coating by compressing and rolling the concrete against the pipeline using specialised equipment.

Product GALLARY

Magnetite powder product image
Magnetite mineral powder
Industrial magnetite powder
Magnetite powder for industrial applications
